Soler & Palau Inline Rectangular Duct Fans

Ventilation Ducting  | Fans & Actuators | Fans | Inline Rectangular Fans |  Soler & Palau Inline Rectangular Duct Fans



Inline Rectangular Duct Fans

Currently unavailable

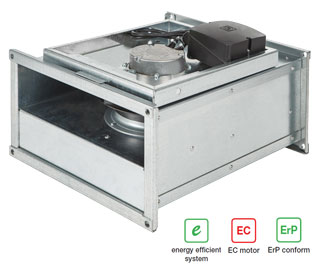

Low profile rectangular duct fans with high quality features. Manufactured from galvanised mild steel and specially designed for rectangular ductwork. Incorporated inspection hatch and remote terminal box. Centrifugal fan with backward curved, dynamically balanced, impeller.

Motors
High efficiency and low consumption brushless motor. Speed is 100% controllable by the potentiometer located in the terminal box, or via an external control such as the REB-ECOWATT speed controller.

Please allow 4 working days.


For further, more detailed information, on this range of fans please visit the page linked below:

Rectangular Inline Duct Fans IRB ECOWATT

IRB-180 Rectangular Inline Duct Fan
IRB-180 ECOWATT

Fan size: 300x150mm
Single phase

• Max air volume at 3000 rpm (M³/h): 640
• Weight: 10kg
• Speed controllable. Use REB-ECOWATT controller


£473.12 (Excluding VAT at 20%)






IRB-180 Rectangular Inline Duct Fan

IRB-200 Rectangular Inline Duct Fan
IRB-200 ECOWATT

Fan size: 400x200mm
Single phase

• Max air volume at 2650 rpm (M³/h): 1400
• Weight: 17kg
• Speed controllable. Use REB-ECOWATT controller


£555.87 (Excluding VAT at 20%)






IRB-200 Rectangular Inline Duct Fan

IRB-225 Rectangular Inline Duct Fan
IRB-225 ECOWATT

Fan size: 500x250mm
Single phase

• Max air volume at 2320 rpm (M³/h): 2140
• Weight: 22kg
• Speed controllable. Use REB-ECOWATT controller


£799.13 (Excluding VAT at 20%)






IRB-225 Rectangular Inline Duct Fan

IRB-315A Rectangular Inline Duct Fan
IRB-315A ECOWATT

Fan size: 600x350mm
Single phase

• Max air volume at 1500 rpm (M³/h): 2890
• Weight: 39kg
• Speed controllable. Use REB-ECOWATT controller


£884.18 (Excluding VAT at 20%)






IRB-315A Rectangular Inline Duct Fan
